This article aims to help end users use the TC Bar with Barco Clickshare devices.
*Necessary components you will need are as follows:
- Hardware:
- Sennheiser TC Bar S / TC Bar M
- Barco CX-20/ CX-30 / CX-50
- **OFE Video Display device with HDMI inputs
- **OFE USB-C to USB-A
- **OFE Ethernet cables:
- Minimum Cat5e; Recommended Cat6
- Software:
- Sennheiser Control Cockpit Software
- Barco Clickshare Desktop App
*Note. List is not exhaustive, you may need other types of equipment such as but not limited to: network switch, power conditioner, server equipment rack, external PTZ camera, USB hubs, and etc. Depending on your setup.
**OFE = Owner Furnished equipment.

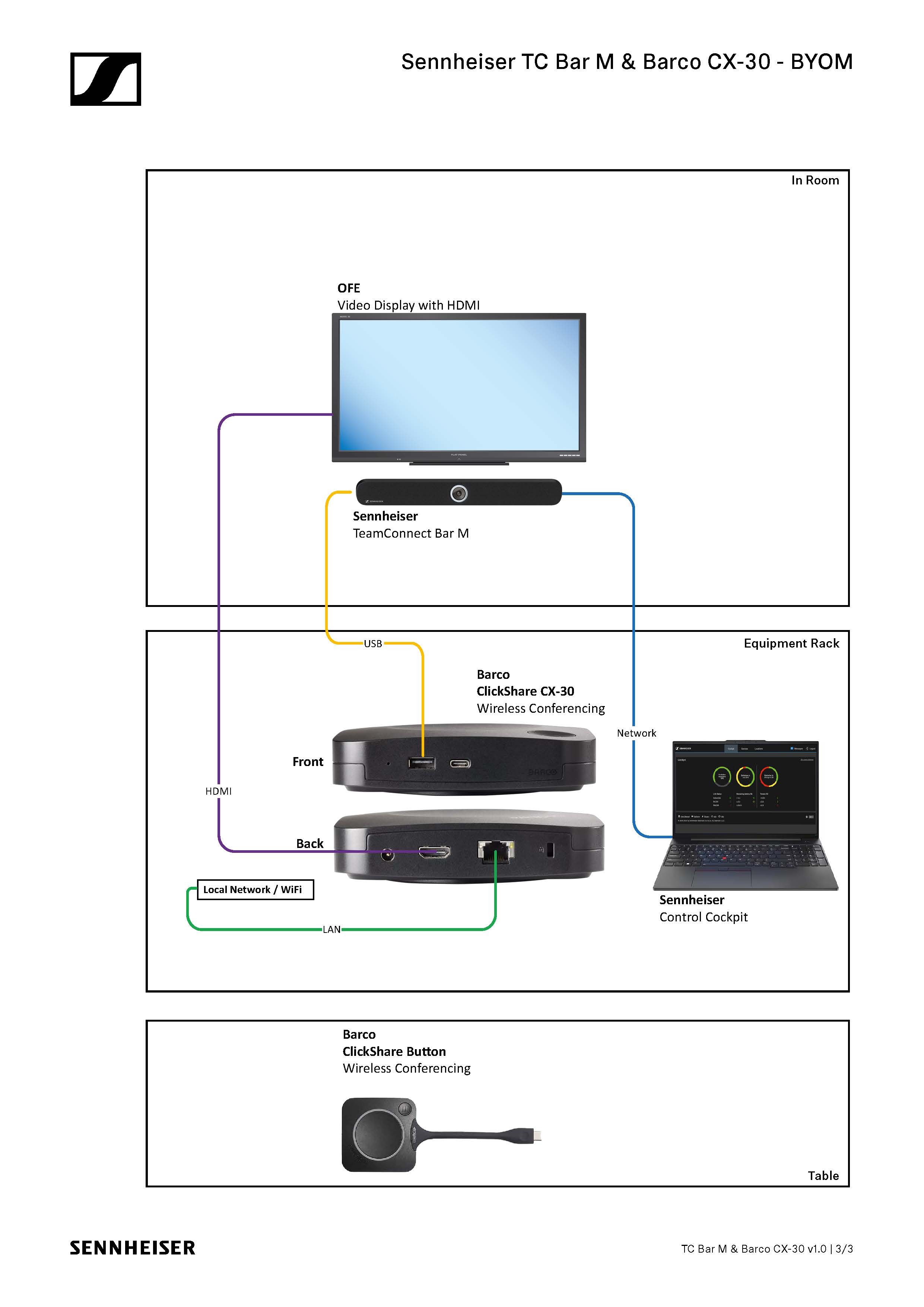

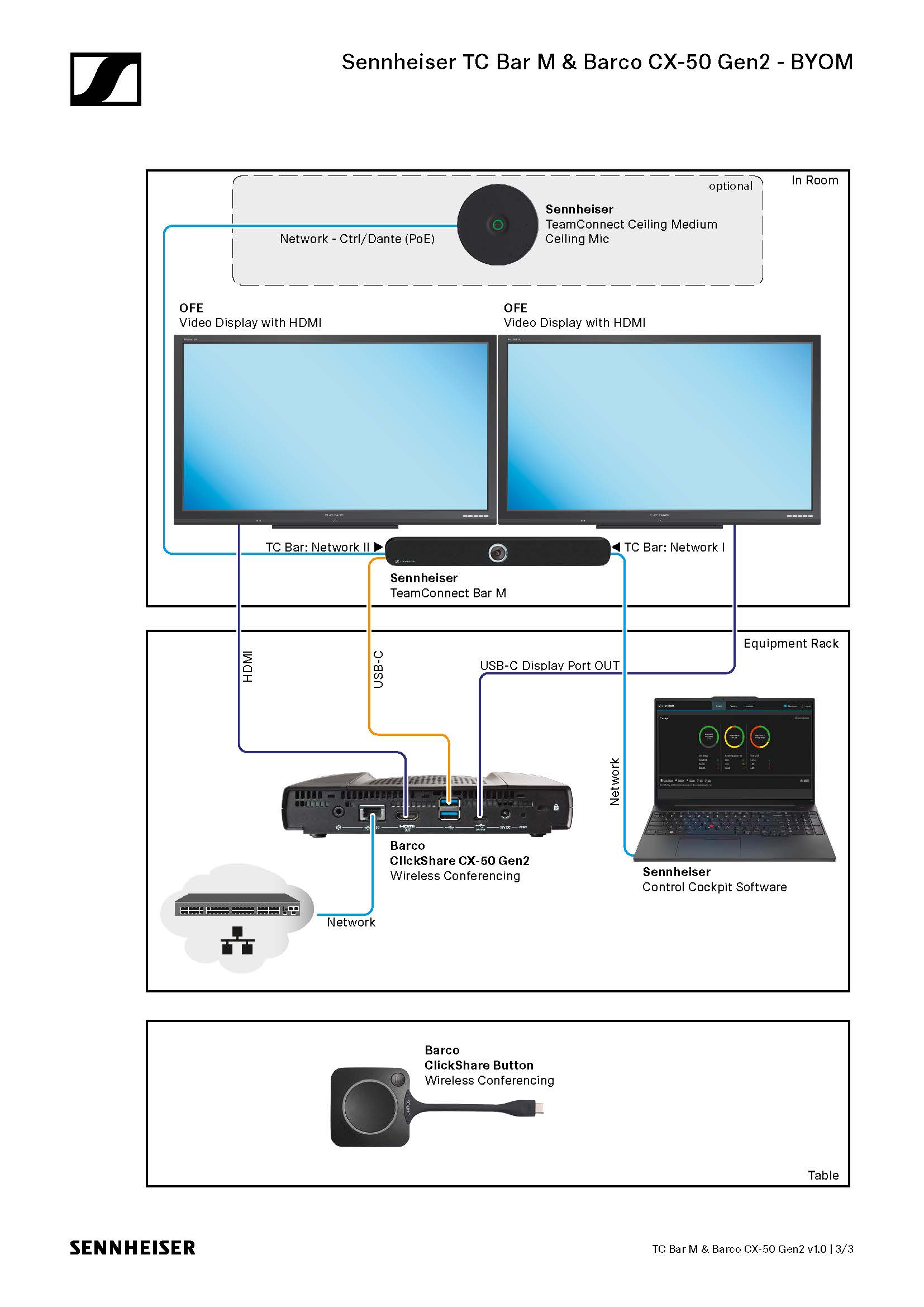

The following images below are guides of a connection diagram. Do note that you will need to connect your TC Bar S / TC Bar M to the network using ethernet cable for you to remotely monitor and control the TC Bar settings via Sennheiser Control Cockpit software.
If the TC Bar S or the TC Bar M Video is 'lagging' or not working properly, or if any other connections are not working out properly with jitter or lag please make sure to use the original cables provided! Or check out our FAQ guide here: TC Bar - FAQ – Sennheiser
If you are still facing further issues with setting up your devices, please do not hesitate to reach out to us directly, or please kindly go to Barco's Knowledge Base website here: Knowledge base - Barco which may have more information to assist with the issue you might be facing
