EW G4 antenna distribution system diagrams

Using antenna distribution systems with multiple EW G4 receivers offers key benefits. Instead of separate antennas for each receiver, a distribution system lets multiple receivers share one pair of antennas, simplifying setup, enhancing RF performance, and improving scalability.

For more info, see these articles:

• EW G3/G4 Multichannel systems
• Wireless microphones - antenna distribution systems
• Antenna Cable and Antenna Boosters

Note: Multichannel systems need careful antenna design, placement, and cable loss calculations to avoid performance issues with long cables. Contact our support for guidance.

The original EW G4 antenna splitter, ASA 214, has been replaced by the fully compatible EW-D ASA.

Below are diagrams for antenna distribution systems for 4 channels, 8 channels and 16 channels
In the attachments you can find diagrams for 3 channels up to 32 channel systems

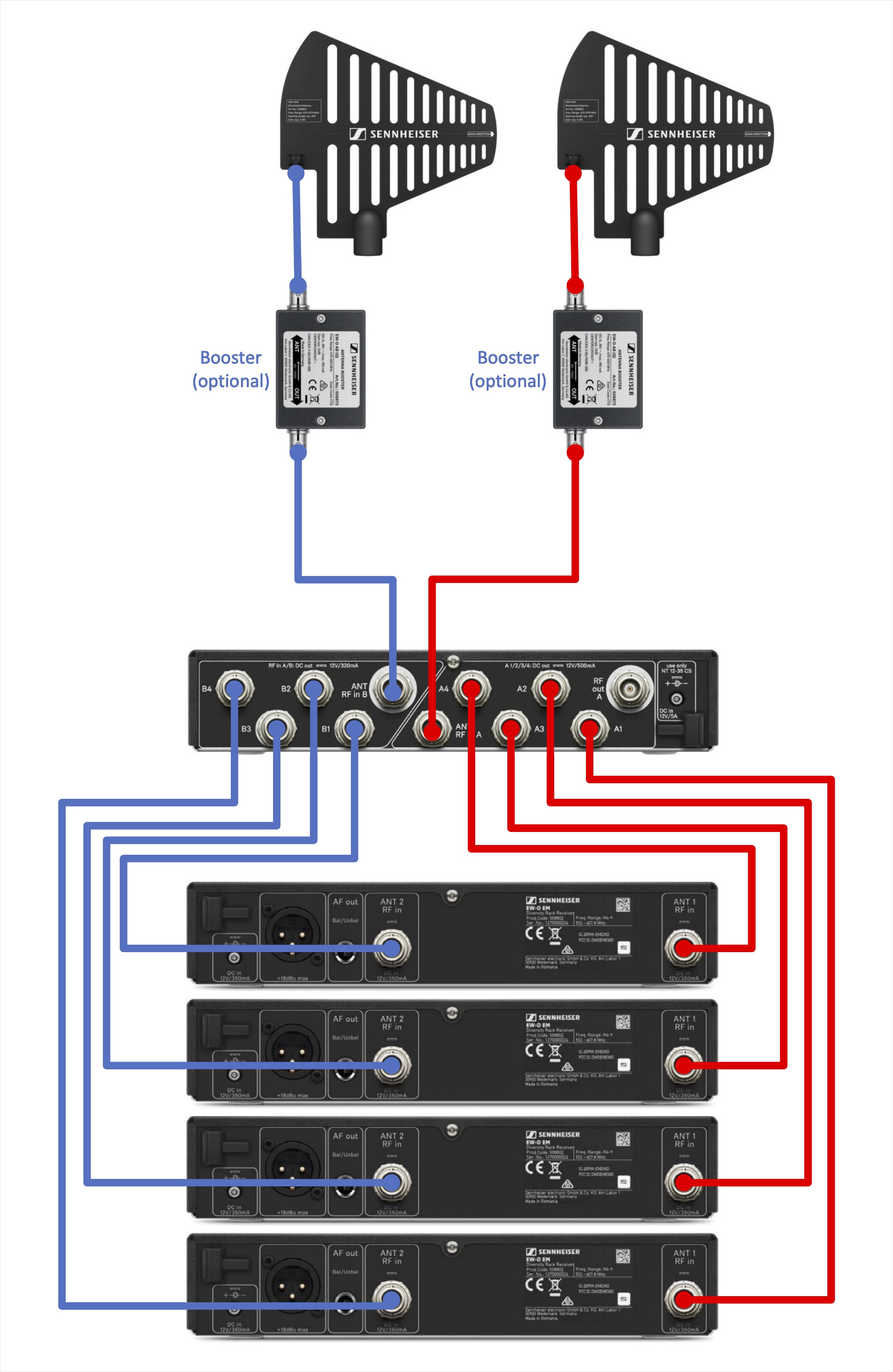

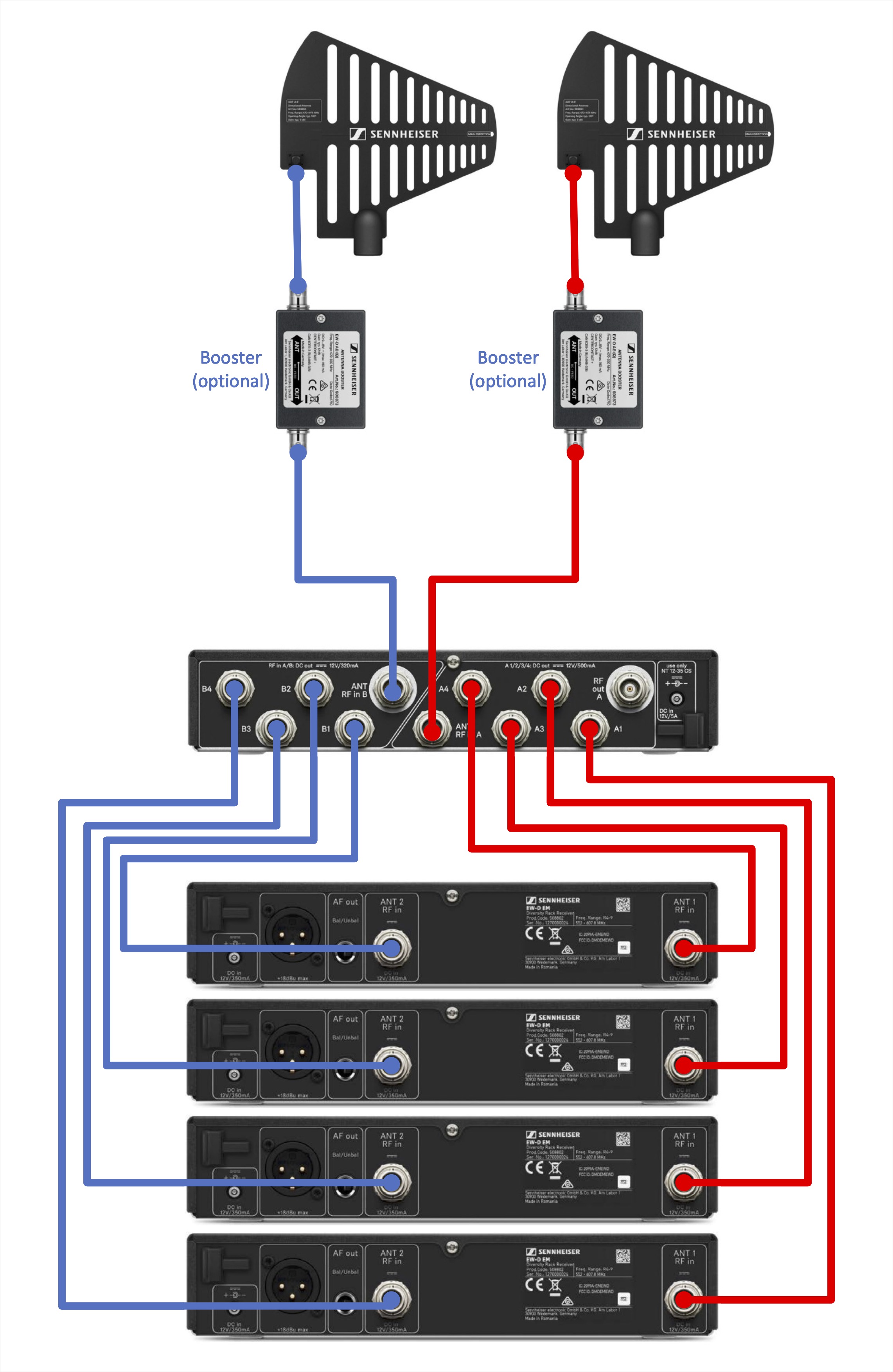

4 channel system:

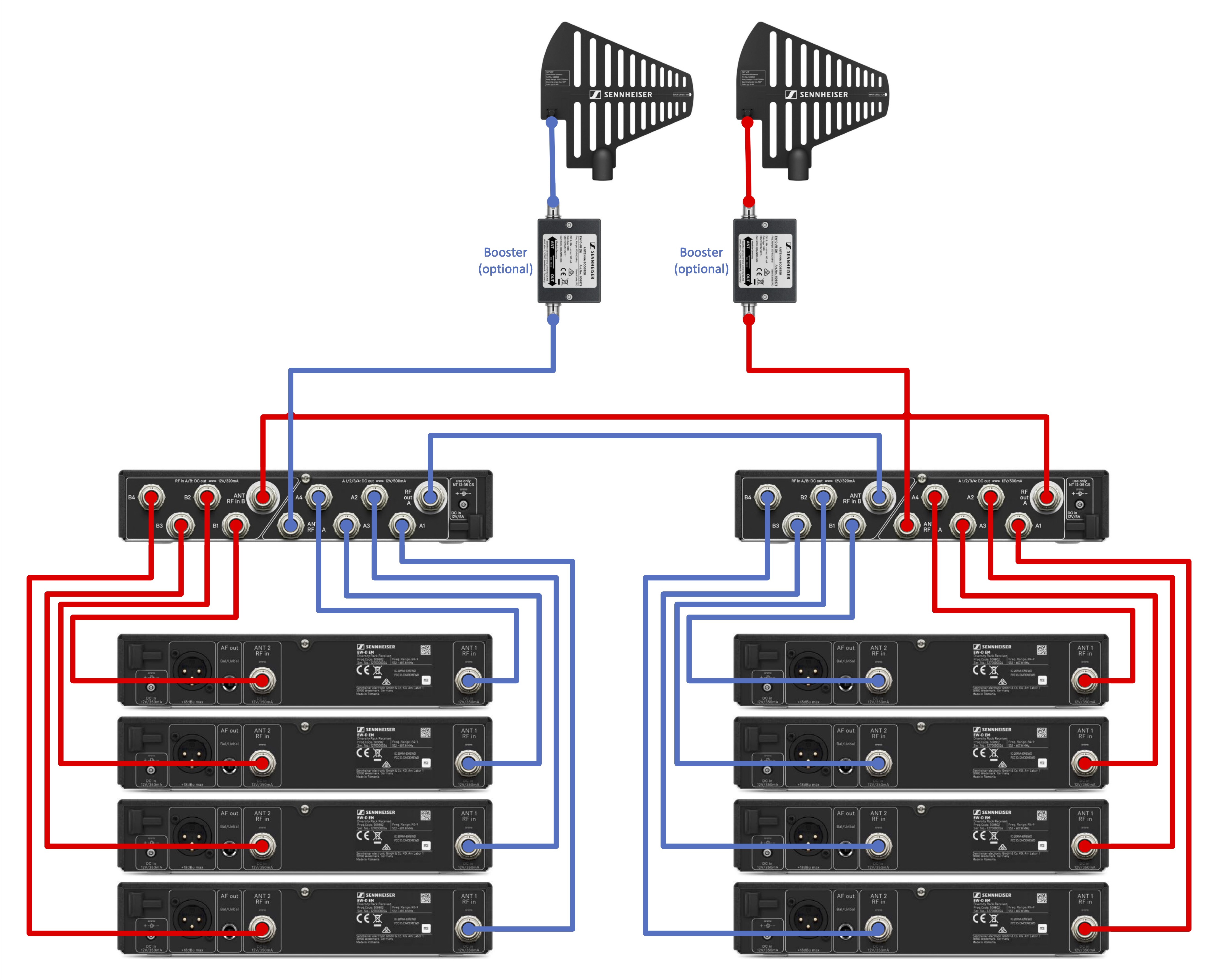

8 channel system:

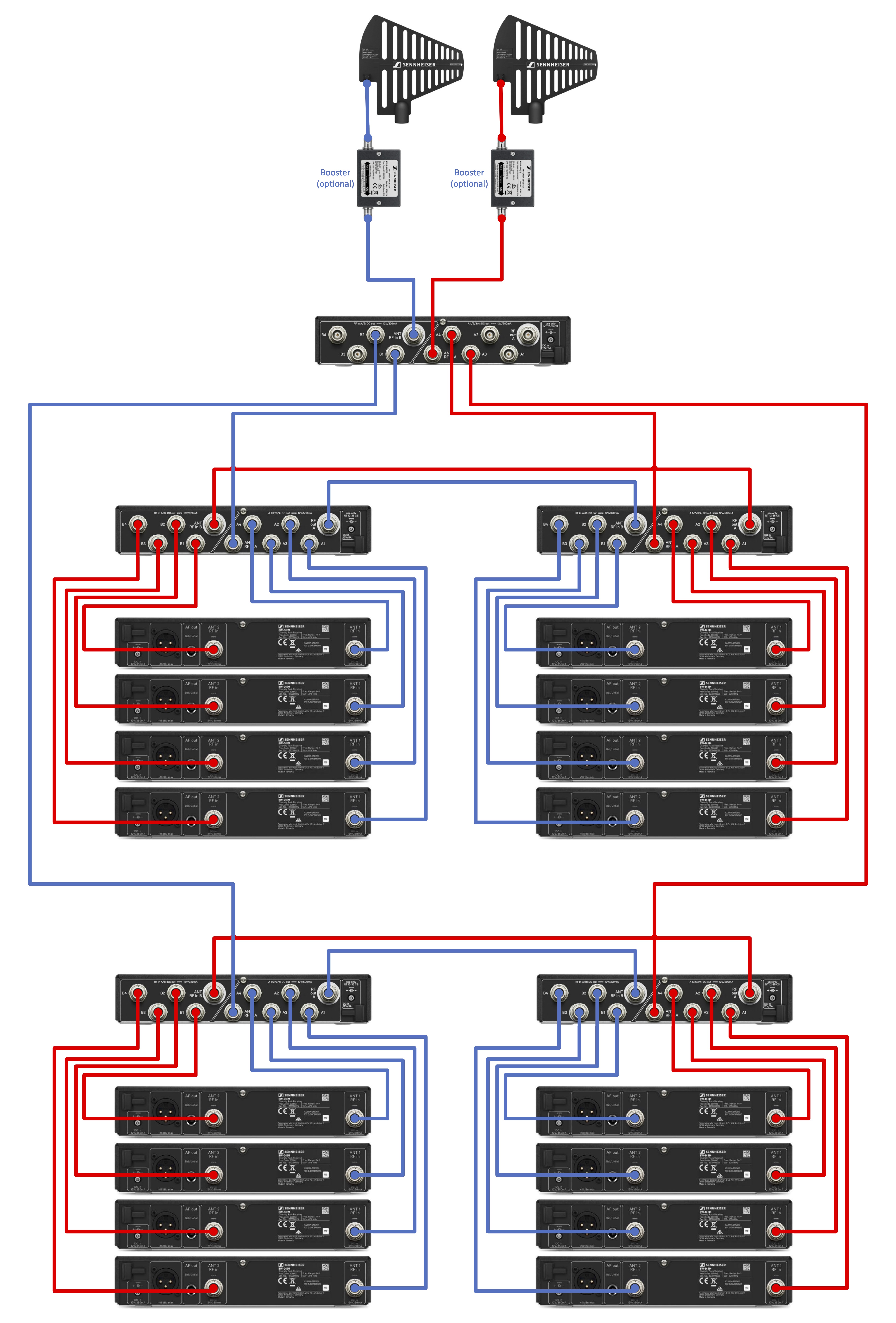

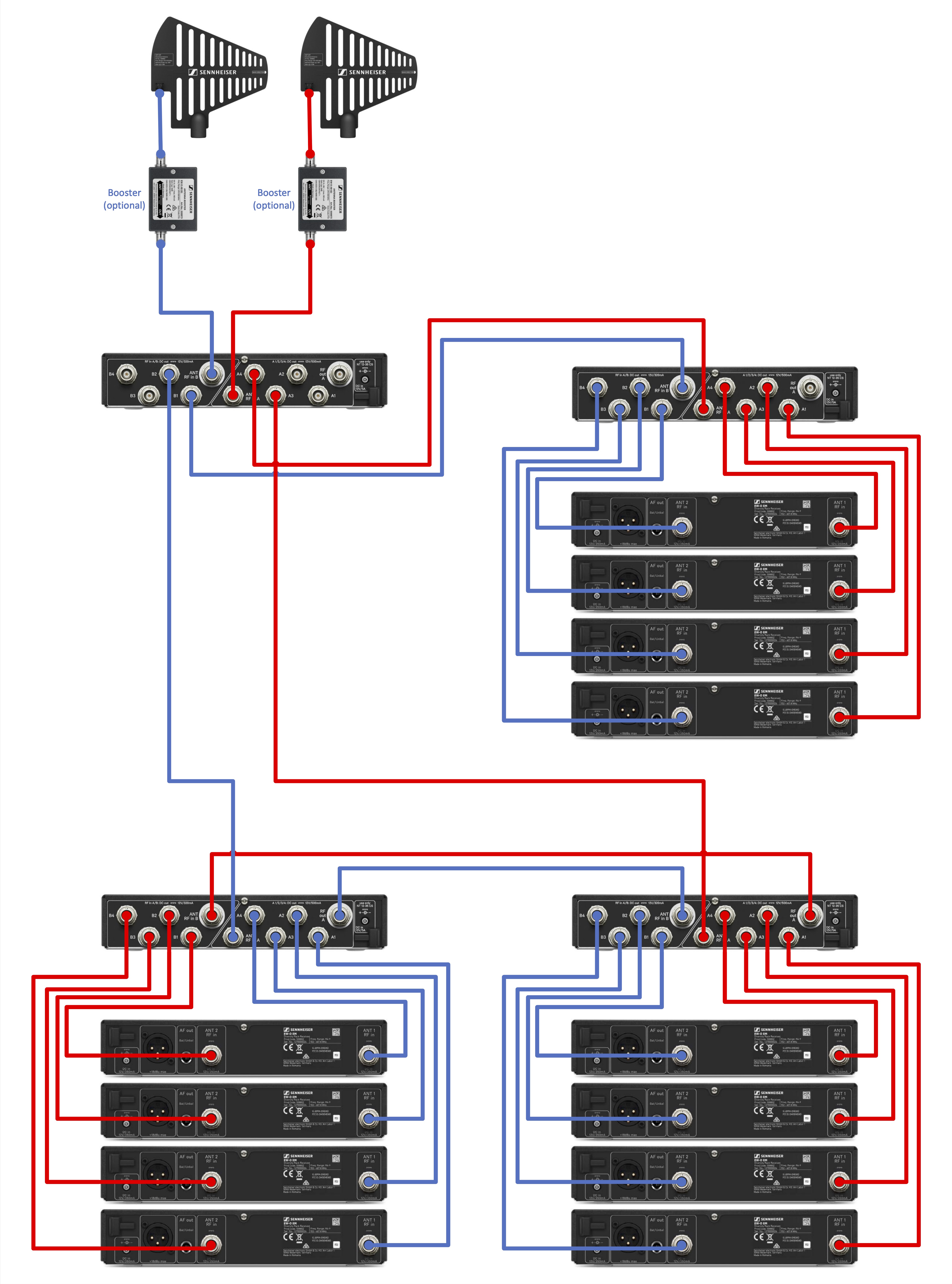

16 channel system:


Attachments:

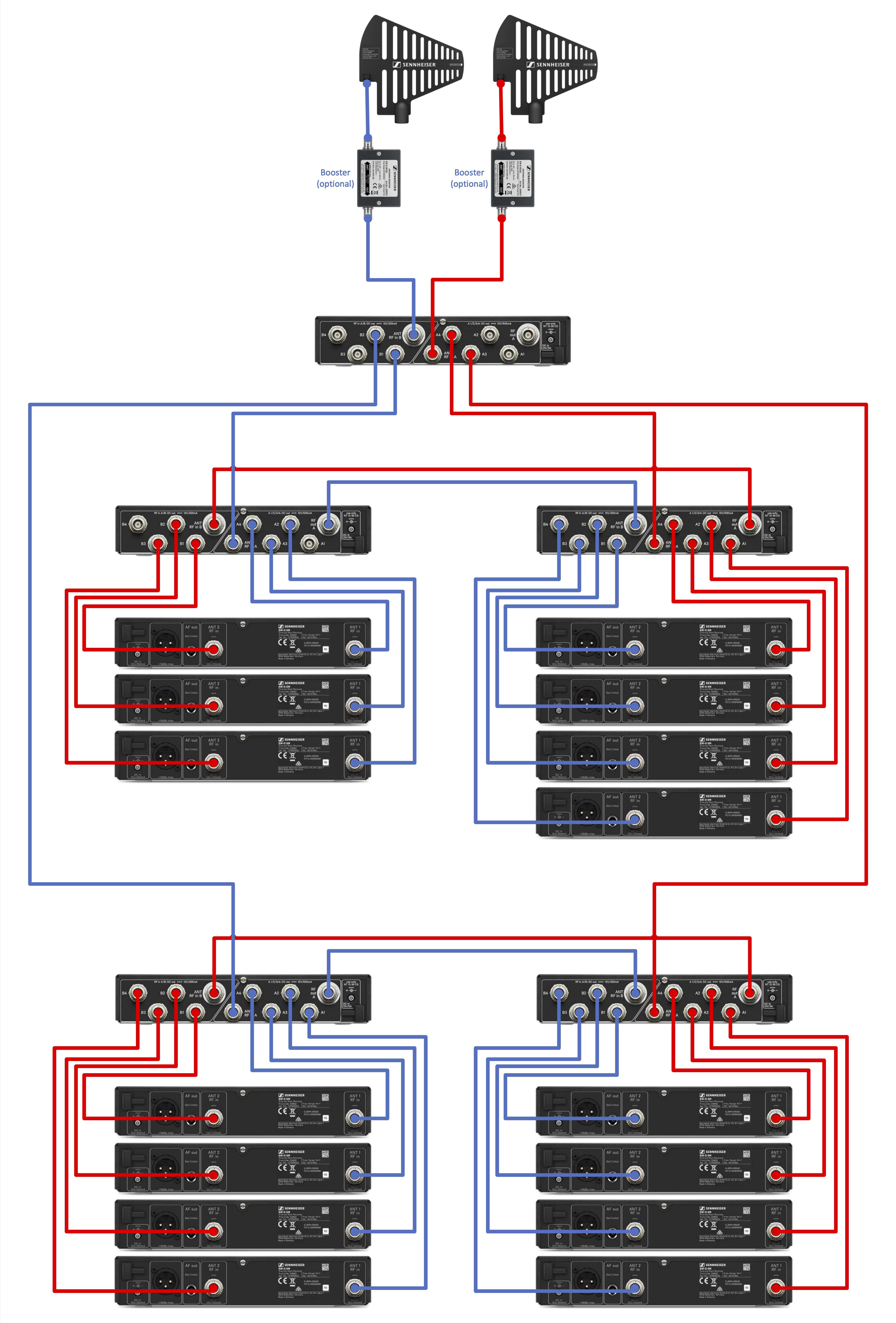

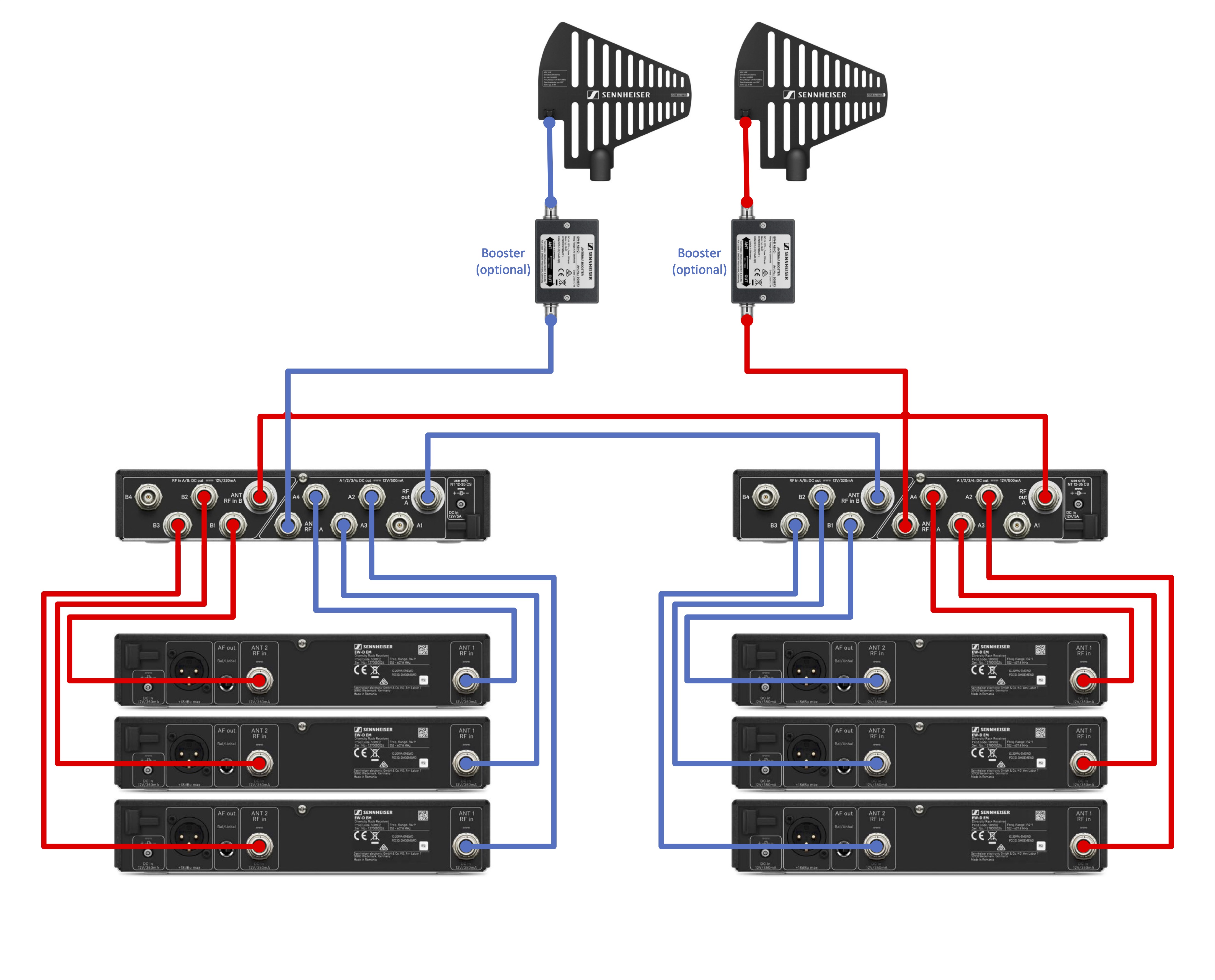

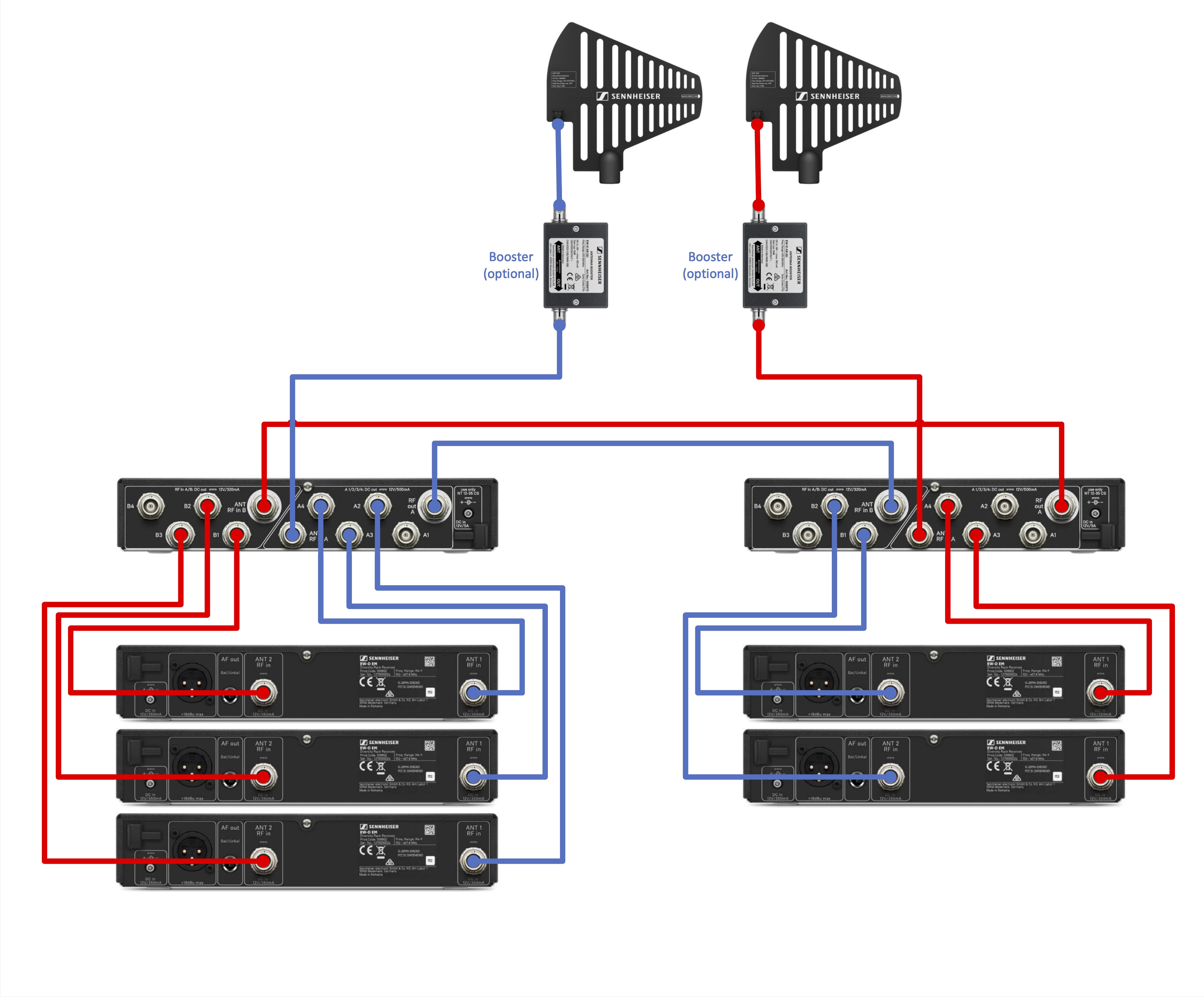

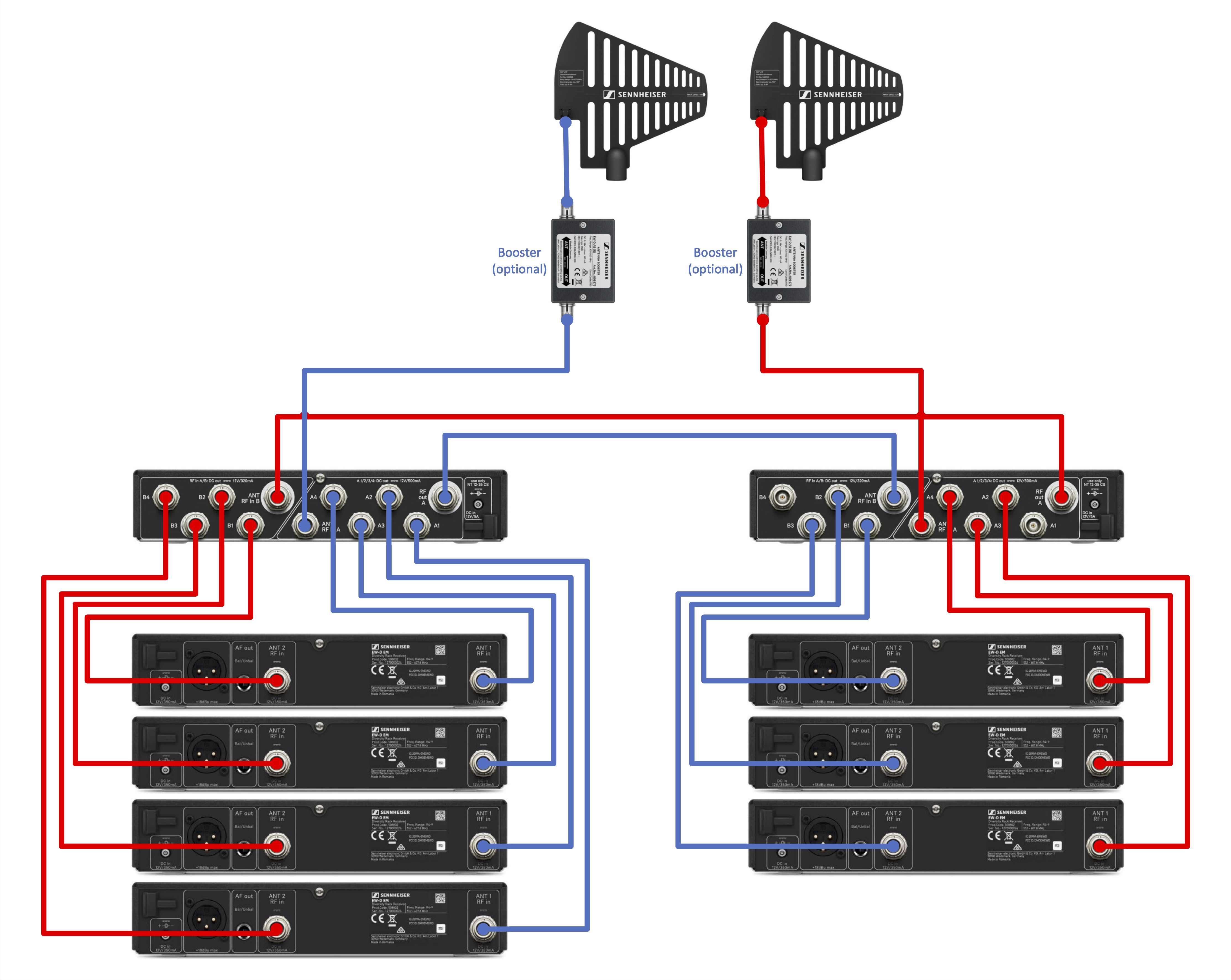

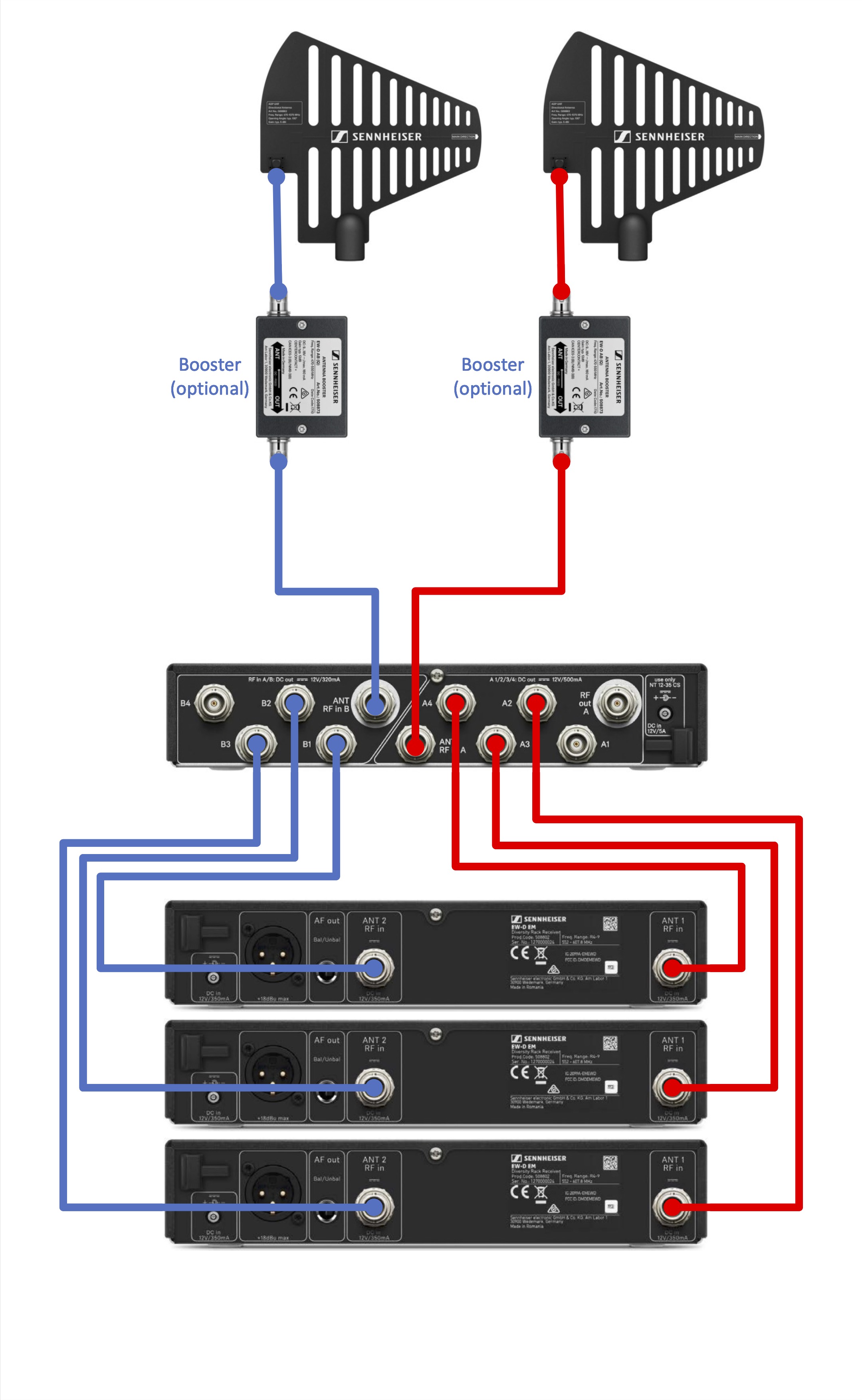

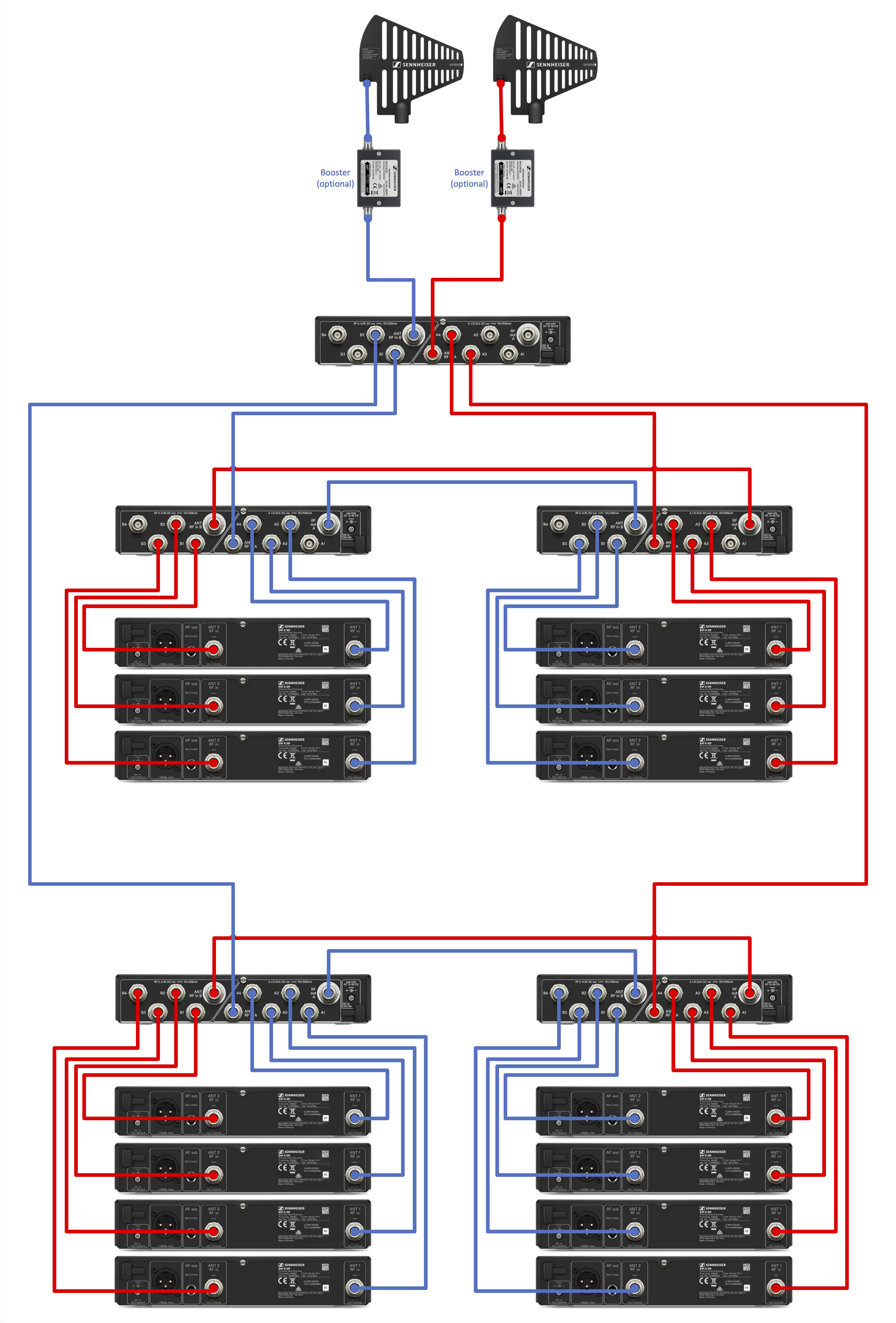

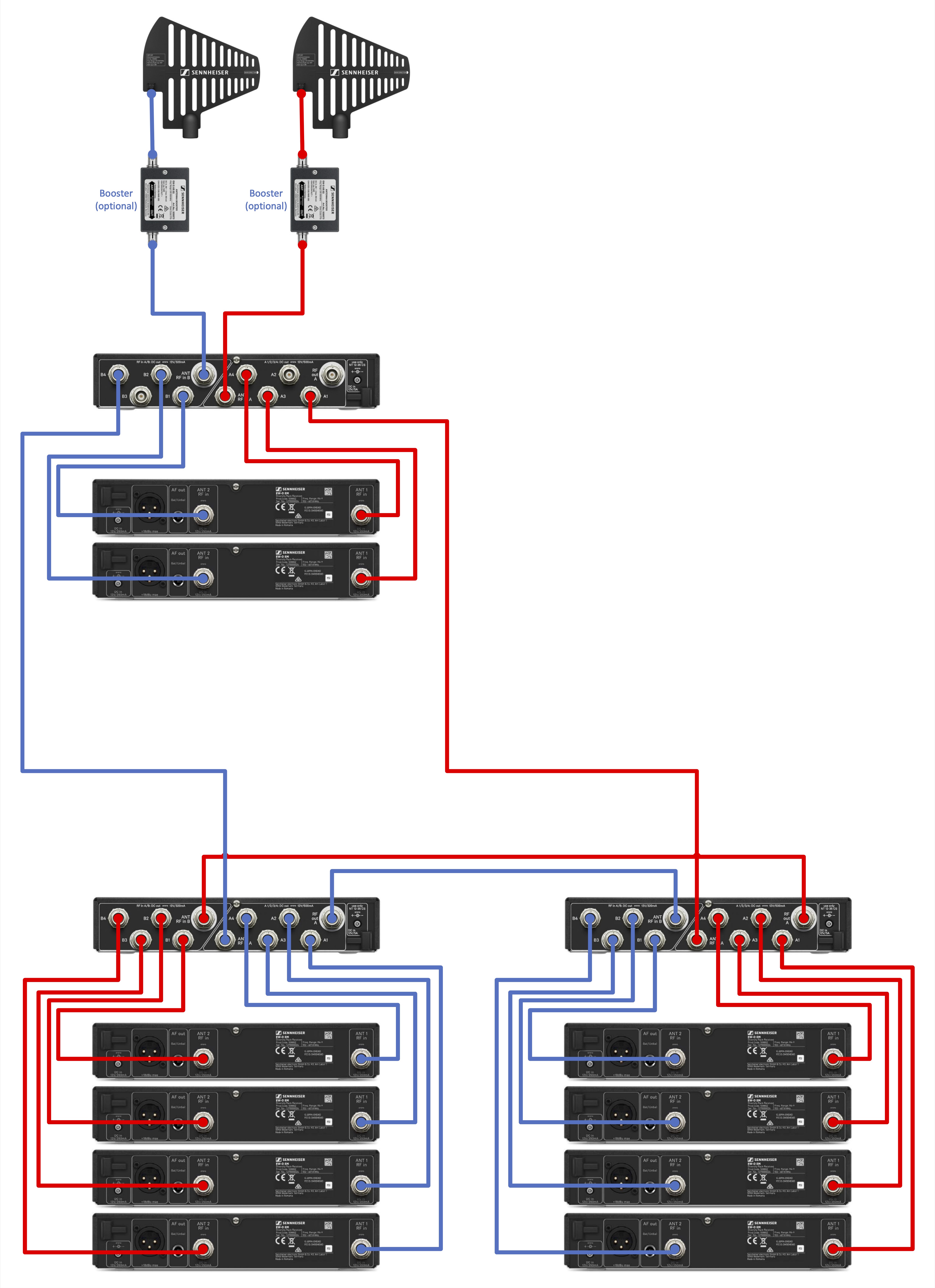

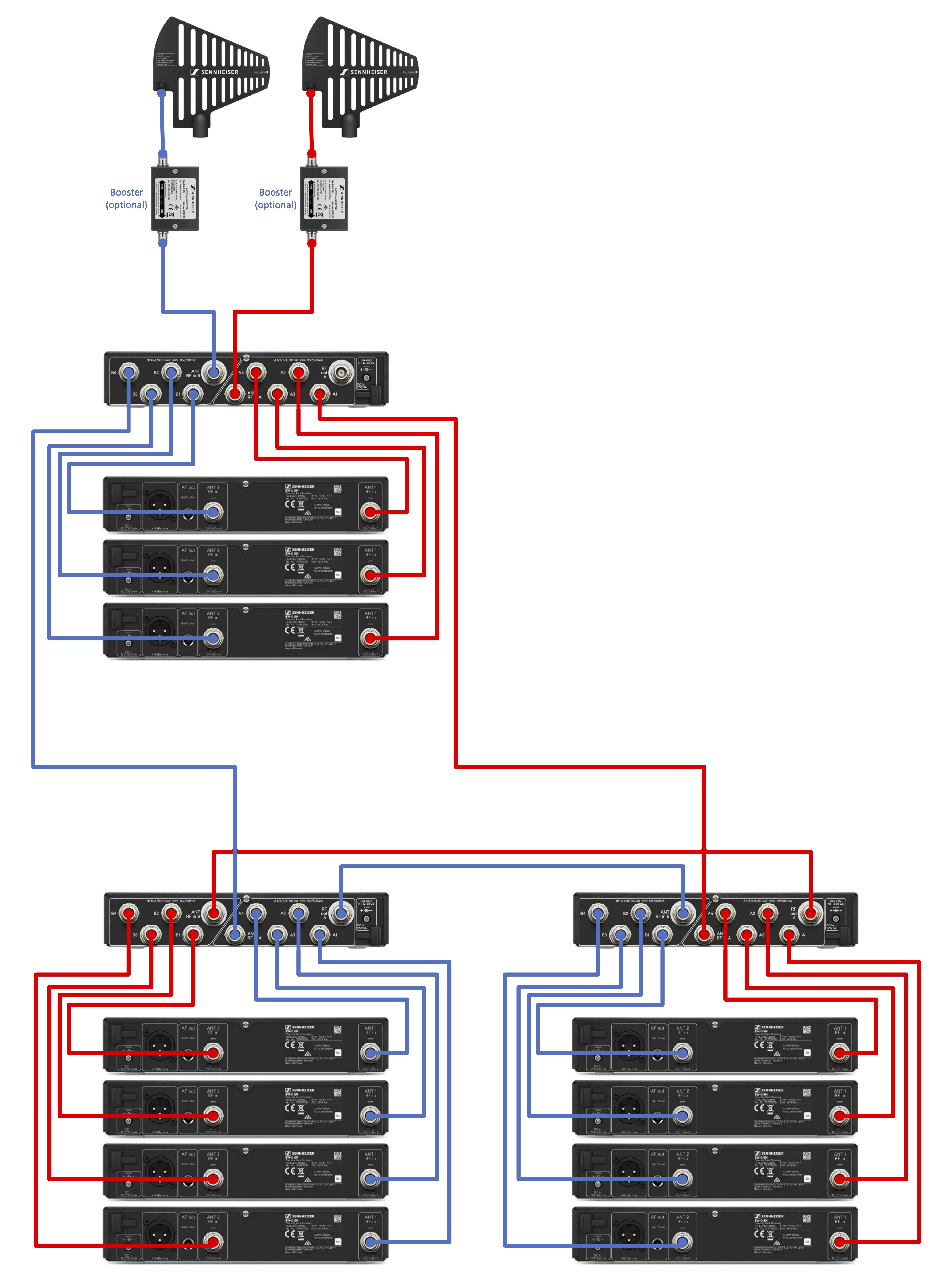

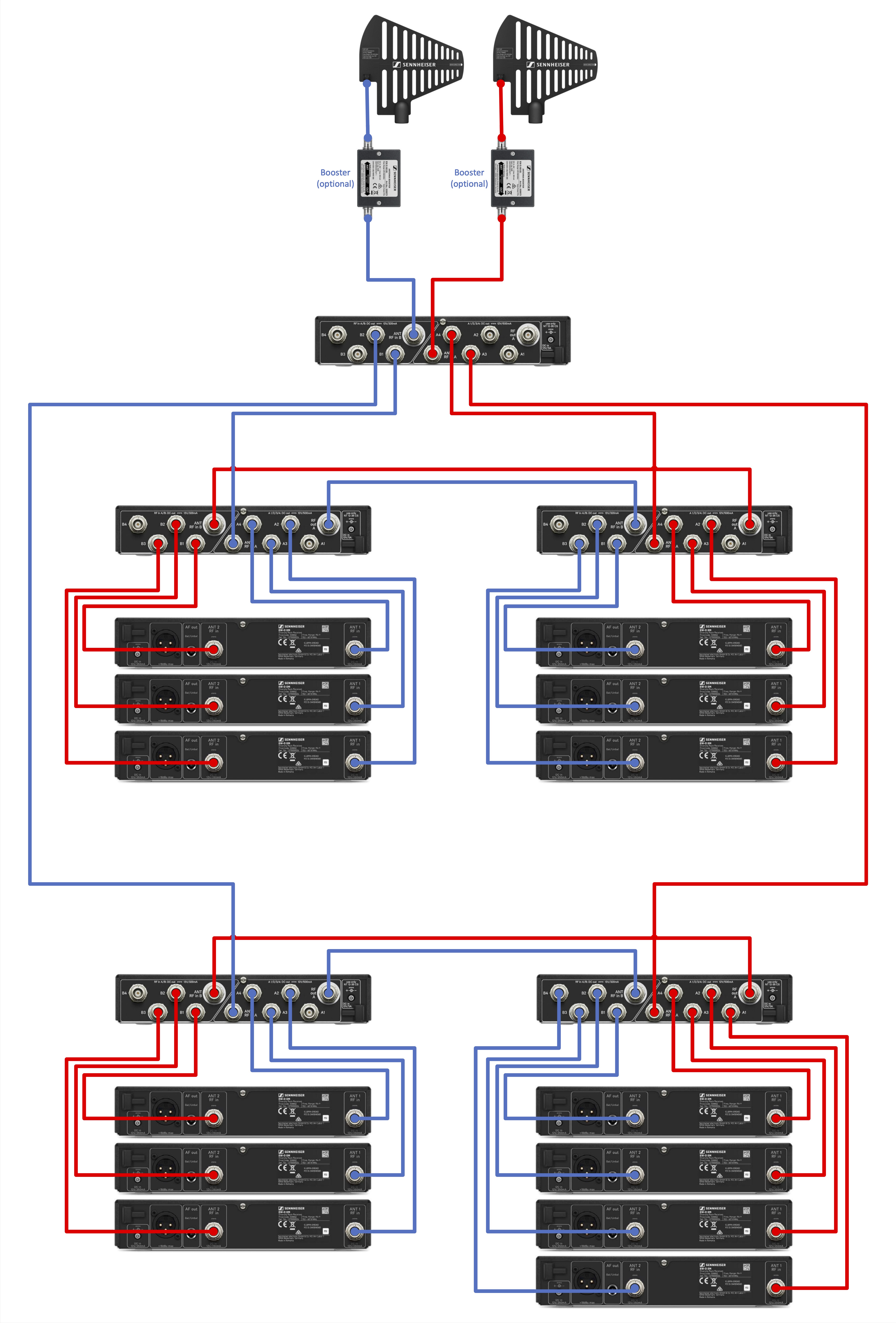

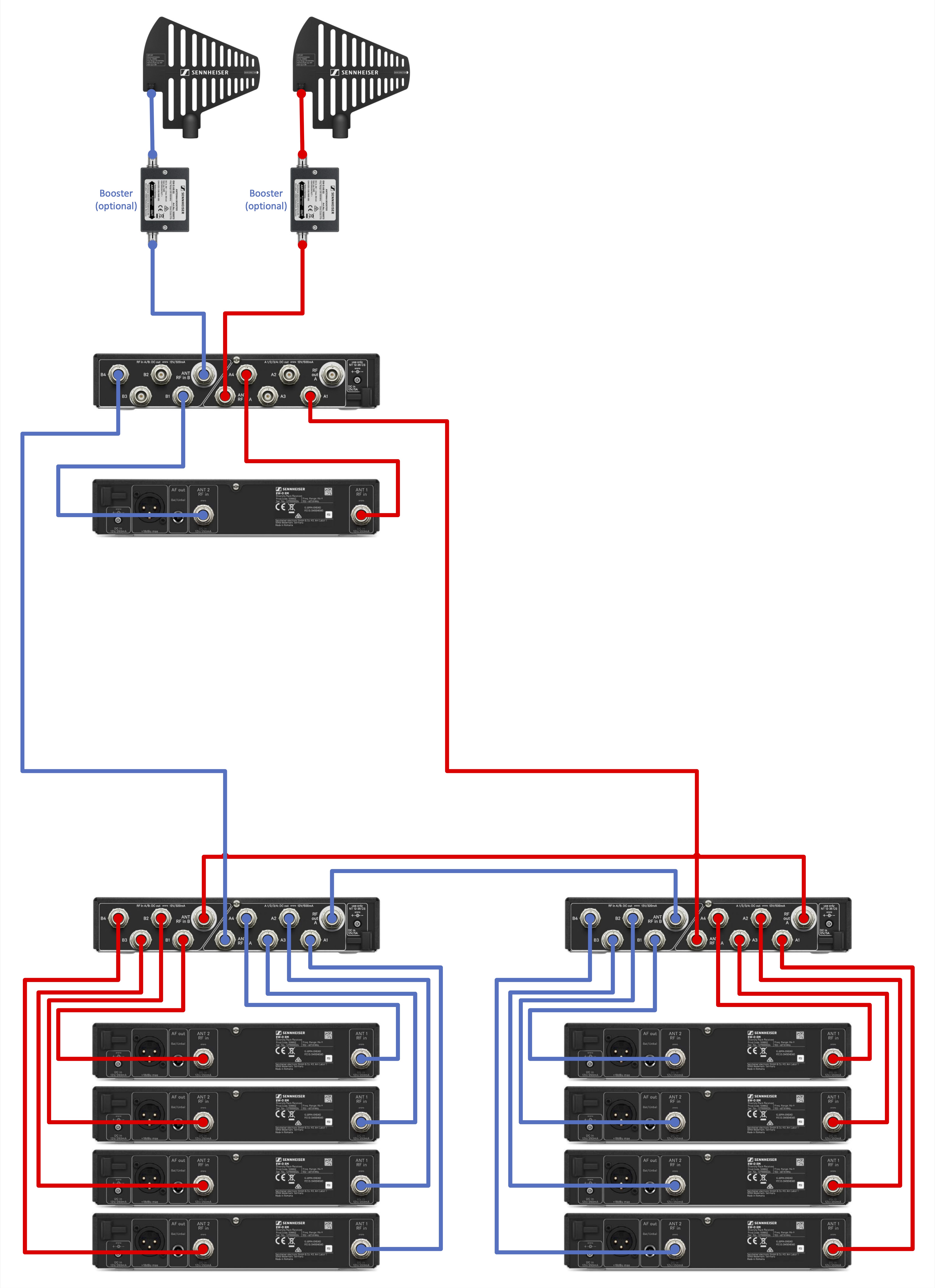

Below you find images for 3 channel up to 32 channel systems
