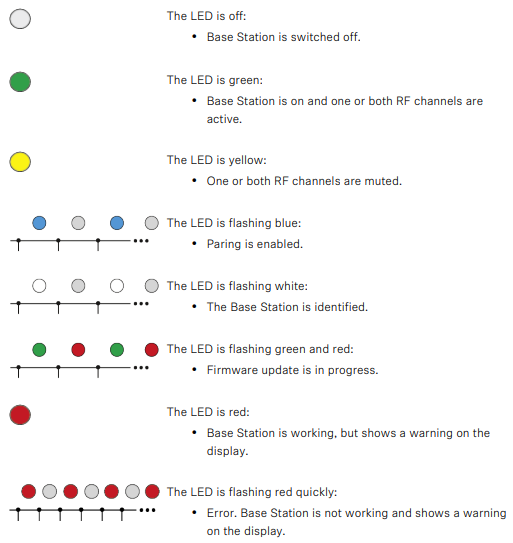

Meaning of the LED
The LED on the front of the Base Station indicates the following information.
Information on the display
Basic information is shown on the display.
- The display goes into screen saver after some time. You can wake up the display by pressing or turning the jog-dial. The display shows the operating menu, which can be used to configure a few settings

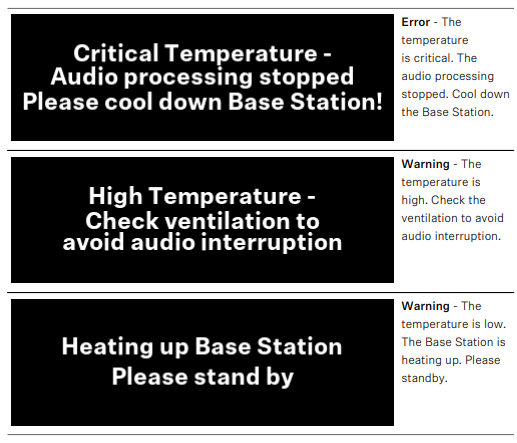

In certain situations, status messages may appear on the display.
